12+12 MWe, 3.5Mpa, 880°C, CFB
HJJ ( Hangzhou Jin Jiang Group) is one the biggest Waste to Energy companies using CFB boiler technology in China. As a part of HJJ´s boiler upgrade program the waste processing plant for the Xiaoshan power plant was completely replaced by a high capacity TYRANNOSAURUS® plant.
The Xiaoshan SRF production plant and the Hankou plant are together the first of their kind in HJJ. The plant was commissioned and taken into production in 2016.

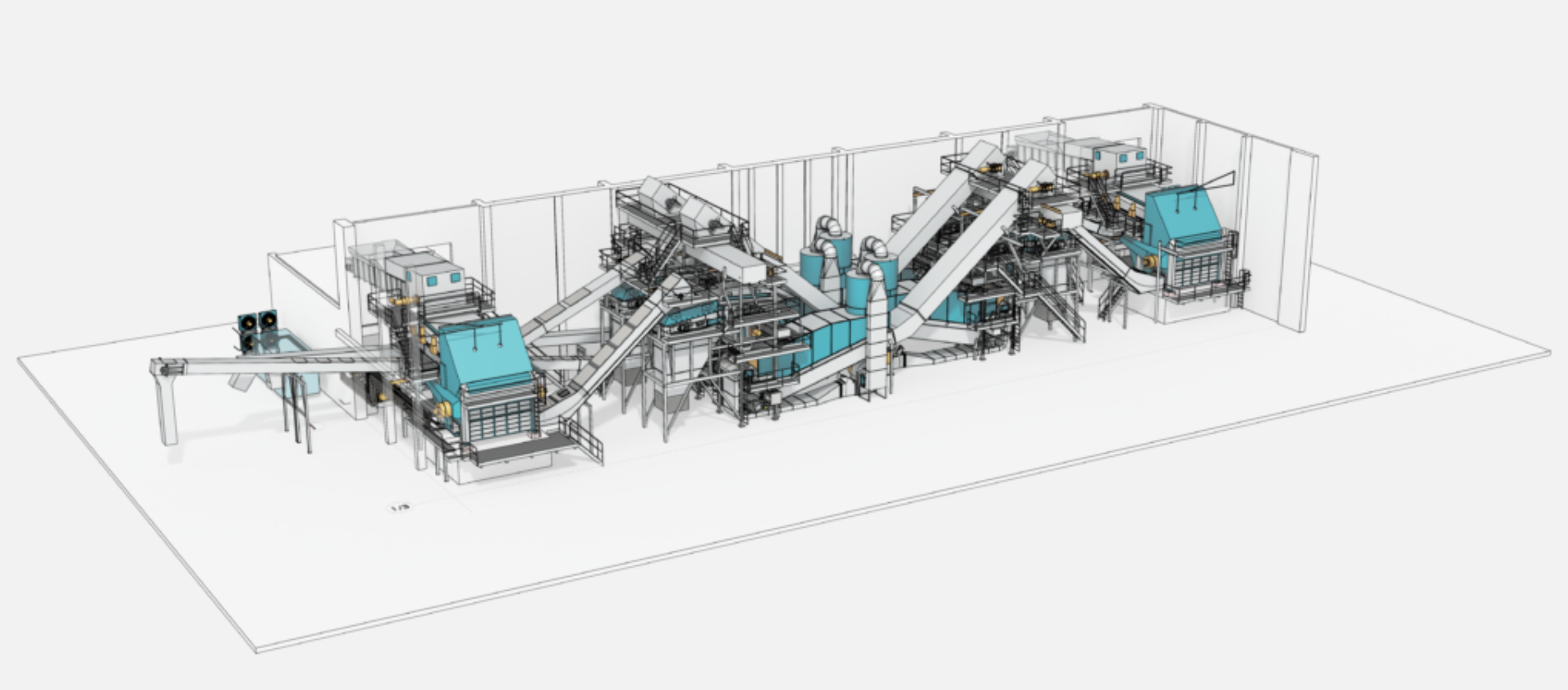

The TYRANNOSAURUS® plant can process up to 700.000 tons of local municipal solid waste (MSW) per year and consists of two processing lines with TYRANNOSAURUS® 9904 Shredders and separation lines removing magnetic metal and heavy fraction. The SRF fuel is fed into the CFB boilers for electricity production. The TYRANNOSAURUS® plant has significantly improved the boilers’ performance concerning availability, yield and reduced emissions.
| Customer: | Hangzhou Jin Jiang Group, Xiaoshan, Hangzhou, China |
| Category: | Waste to electricity plant |
| Waste processing capacity: | 438.000 tpa |
| Receiving storage volume: | 10600 m3 |
| SRF storage volume: | 12800 m3 |
| Boiler feeding capacity: | 20 tph / boiler (3 boilers in total) |
| Boiler size / Kiln capacity: |
|
| Main equipment: |
Chain-belt feeder Drum screen TYRANNOSAURUS® 9905 Shredder Magnet separator TYRANNOSAURUS® Air Classifier Conveyors |
| Start-up: | 2017 |
